KOERTING JET SCRUBBER

How our Koerting Jet Scrubber Working :

The gas enters the jet scrubber from the side. The motive fluid acts as a scrubbing medium and direct current injects  it to the gas and into the scrubber. The gas is accelerated due to the impulse exchange with the motive fluid. This results in conveying flow, enabling an increase in the gas pressure.

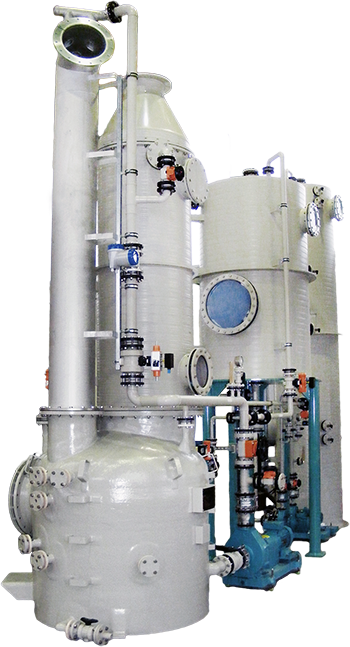

A typical Koerting Jet Scrubbing plant consists of:

• Jet scrubber
• Separation tank
• Swirl droplet separator (DTA)

Applications

The self-priming jet scrubber is superb for:

• Conveying gas without mechanical ventilators
• Direct gas cooling (quenching)
• Physical and Chemical absorption of harmful substances (SO2, Cl2, HCI, NH3, HF, H2S, etc.)
• Removing dust with particles over 3 μm in size
• Recovering substances from gases

Sizes

The Körting jet scrubbing plants are supplied as follows:

• as standard versions of DN 80 to DN 1000 for gas flows of 60 to 26000 m³/h, also in combination with packed towers
• customised solutions for gas flows of 60 to 100000 m³/h, in single or multi-stage designs

Depending on the application, combinations can be used to fulfil special conditions and requirements. Solutions with good track records are also available for special cases, such as gas flows of up to 300000 m³/h or gas temperatures over 1000 °C.

Materials

• carbon steel, stainless steel
• steel with coatings: rubber, PVDF, PTFE, Halar, etc.
• plastics: GFK, PP, PVC, PVDF reinforced and non-reinforced
• special materials
